Basic Info.
Model NO.
DB-ST/SN
Application Range
Lighting and Power
Shell Material
Plastic
Shell Protection Grade
IP30
Brand
Kodery
Transport Package
Carton
Trademark
KODERY
Origin
China
HS Code
85381090
Production Capacity
20, 000 PCS/Per Month
Product Description

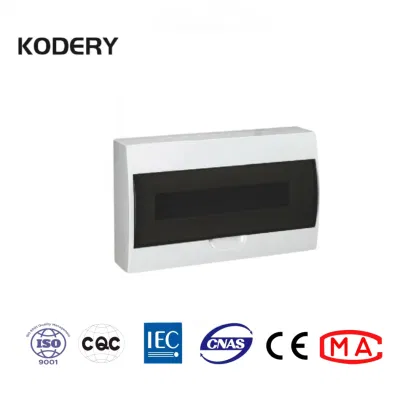

Distribution Box (DB-FT/FN)
This product applies to terminal of AC 50/60 Hz, rated operating voltage up to 400 V and rated current up to 63A, equipped with various modular electric for function of electric energy distribution, control, (short circuit, overload, earth leakage, over-voltage) protection, signal, measurement of terminal electric appliance.
Equipped with transparent/ non-transparent door
Single row: door open upward 90 degrees. MCB distribution box
Rated current: 4 ways 50A, 6-36 ways 63A
Material: insulating, self-extinguishing fire material
Protection level: indirect contact proof 2 protection
| Surface mounting | ||||
| Model number | Material | ABS-PC | ||
| Dimension | L | W | H | |
| DB104/ST/SN | 4ways | 52 | 24 | 42.5 |
| DB106/ST/SN | 6ways | 52 | 34.5 | 42.5 |
| DB108/ST/SN | 8ways | 52 | 38.5 | 42.5 |
| DB112/ST/SN | 12ways | 52 | 27 | 42.5 |
| DB118/ST/SN | 18ways | 54.5 | 37.5 | 45.6 |
| DB124/ST/SN | 24ways | 55 | 34.5 | 56 |
| DB136/ST/SN | 36ways | 49.5 | 32.5 | 59.5 |
