Basic Info.
Model NO.
BJS1
Place of Origin
Zhejiang, China
Thickness
1.2mm, 1.5mm, 2.0mm
Paint Finish
Epoxy Polyester Coating
Color
Ral7035 or Ral7032
Lock
Available on Request
Certificate
CE, IEC, RoHS, TUV, SGS, IP68, IP66
OEM
Offered
Customised Size
Accepted
Structure
Distribution Box
Size
From 200X200X150mm to 1400X1200X300mm
Brand
B&J
Transport Package
Carton
Specification
CE, IEC, ROHS, TUV, SGS, IP68, IP66
Trademark
B&J
Origin
China
HS Code
8538900000
Production Capacity
10, 0000PCS/Month
Packaging & Delivery
Package Size
220.00cm * 220.00cm * 170.00cm
Package Gross Weight
11.000kg
Product Description

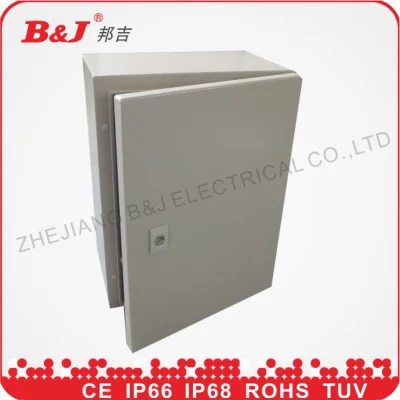

High Quality distribution box,IP66 metal electrical boxes Specifications:
Metal enclosure made from a continiou length of sheet double folded at the front, with back welded to the frame. Both externally and internally protected with polyester epoxy resin Grey paint to RAL7032 or RAL7035 texturized.
Material:
Metal enclosure made from a continiou length of sheet double folded at the front, with back welded to the frame. Both externally and internally protected with polyester epoxy resin Grey paint to RAL7032 or RAL7035 texturized.
Surface finish:
Enclosure and door:Dipcoat-primed,powder-coated in textured Ral7032 or Ral7035 outside
Mounting plate : Galvanized steel or sheet steel to paint in RAL2004/RAL7032
Protection:
Protection degree:IP66
Impact resistaance:IK10
Supply includes:
Enclosure of all-round solid construction
gland plate with sealing gasket,door with lock.
Warranty Service:
We 100% Gurantee your Satisfaction
1 Pls report us if there are any problem, we will solve it ASAP.
2 This items comes with 1 YEAR warranty.
Equivalent replacements can be provided with shipment of your next order if the products are broken for unartificial factors within 1 YEAR; however photos are needed for us to find the factors of damaging them.
3 Shipping and handling fees are not refundable for return or exchange items.
Our Advantages:
1. 25 year's OEM & ODM experience
2. Spain Design
3. the color can remain for over 5 years
4. professional team
Company Photo :
NO. | Code no. | HEIGHT | WIDTH | DEEP | Brand |
| mm | |||||
| distribution box (BJS1 SERIES) | |||||
| 1 | BJS1-2020/150 | 200 | 200 | 150 | B& J |
| 2 | BJS1-2520/150 | 250 | 200 | 150 | B& J |
| 3 | BJS1-3020/150 | 300 | 200 | 150 | B& J |
| 4 | BJS1-3020/200 | 300 | 200 | 200 | B& J |
| 5 | BJS1-3025/150 | 300 | 250 | 150 | B& J |
| 6 | BJS1-3025/200 | 300 | 250 | 200 | B& J |
| 7 | BJS1-3025/250 | 300 | 250 | 250 | B& J |
| 8 | BJS1-3030/150 | 300 | 300 | 150 | B& J |
| 9 | BJS1-3030/200 | 300 | 300 | 200 | B& J |
| 10 | BJS1-3030/250 | 300 | 300 | 250 | B& J |
| 11 | BJS1-4030/150 | 400 | 300 | 150 | B& J |
| 12 | BJS1-4030/200 | 400 | 300 | 200 | B& J |
| 13 | BJS1-4030/250 | 400 | 300 | 250 | B& J |
| 14 | BJS1-4030/300 | 400 | 300 | 300 | B& J |
| 15 | BJS1-4040/150 | 400 | 400 | 150 | B& J |
| 16 | BJS1-4040/200 | 400 | 400 | 200 | B& J |
| 17 | BJS1-4040/250 | 400 | 400 | 250 | B& J |
| 18 | BJS1-4040/300 | 400 | 400 | 300 | B& J |
| 19 | BJS1-5030/150 | 500 | 300 | 150 | B& J |
| 20 | BJS1-5030/200 | 500 | 300 | 200 | B& J |
| 21 | BJS1-5030/250 | 500 | 300 | 250 | B& J |
| 22 | BJS1-5030/300 | 500 | 300 | 300 | B& J |
| 23 | BJS1-5040/150 | 500 | 400 | 150 | B& J |
| 24 | BJS1-5040/200 | 500 | 400 | 200 | B& J |
| 25 | BJS1-5040/250 | 500 | 400 | 250 | B& J |
| 26 | BJS1-5040/300 | 500 | 400 | 300 | B& J |
| 27 | BJS1-5050/150 | 500 | 500 | 150 | B& J |
| 28 | BJS1-5050/200 | 500 | 500 | 200 | B& J |
| 29 | BJS1-5050/250 | 500 | 500 | 250 | B& J |
| 30 | BJS1-5050/300 | 500 | 500 | 300 | B& J |
| 31 | BJS1-6040/150 | 600 | 400 | 150 | B& J |
| 32 | BJS1-6040/200 | 600 | 400 | 200 | B& J |
| 33 | BJS1-6040/250 | 600 | 400 | 250 | B& J |
| 34 | BJS1-6040/300 | 600 | 400 | 300 | B& J |
| 35 | BJS1-6050/150 | 600 | 500 | 150 | B& J |
| 36 | BJS1-6050/200 | 600 | 500 | 200 | B& J |
| 37 | BJS1-6050/250 | 600 | 500 | 250 | B& J |
| 38 | BJS1-6050/300 | 600 | 500 | 300 | B& J |
| 39 | BJS1-6060/150 | 600 | 600 | 150 | B& J |
| 40 | BJS1-6060/200 | 600 | 600 | 200 | B& J |
| 41 | BJS1-6060/250 | 600 | 600 | 250 | B& J |
| 42 | BJS1-6060/300 | 600 | 600 | 300 | B& J |
| 43 | BJS1-6060/400 | 600 | 600 | 400 | B& J |
| 44 | BJS1-7040/200 | 700 | 400 | 200 | B& J |
| 45 | BJS1-7040/201 | 700 | 400 | 300 | B& J |
| 46 | BJS1-7050/150 | 700 | 500 | 150 | B& J |
| 47 | BJS1-7050/200 | 700 | 500 | 200 | B& J |
| 48 | BJS1-7050/250 | 700 | 500 | 250 | B& J |
| 49 | BJS1-7050/300 | 700 | 500 | 300 | B& J |
| 50 | BJS1-7060/200 | 700 | 600 | 200 | B& J |
| 51 | BJS1-7060/250 | 700 | 600 | 250 | B& J |
| 52 | BJS1-7060/300 | 700 | 600 | 300 | B& J |
| 53 | BJS1-8060/200 | 800 | 600 | 200 | B& J |
| 54 | BJS1-8060/250 | 800 | 600 | 250 | B& J |
| 55 | BJS1-8060/300 | 800 | 600 | 300 | B& J |
| 56 | BJS1-8080/200 | 800 | 800 | 200 | B& J |
| 57 | BJS1-8080/250 | 800 | 800 | 250 | B& J |
| 58 | BJS1-8080/300 | 800 | 800 | 300 | B& J |
| 59 | BJS1-8080/400 | 800 | 800 | 400 | B& J |
| 60 | BJS1-1060/200 | 1000 | 600 | 200 | B& J |
| 61 | BJS1-1060/250 | 1000 | 600 | 250 | B& J |
| 62 | BJS1-1060/300 | 1000 | 600 | 300 | B& J |
| 63 | BJS1-1070/200 | 1000 | 700 | 200 | B& J |
| 64 | BJS1-1070/250 | 1000 | 700 | 250 | B& J |
| 65 | BJS1-1080/200 | 1000 | 800 | 200 | B& J |
| 66 | BJS1-1080/250 | 1000 | 800 | 250 | B& J |
| 67 | BJS1-1080/300 | 1000 | 800 | 300 | B& J |
| 68 | BJS1-1010/250 | 1000 | 1000 | 250 | B& J |
| 69 | BJS1-1010/300 | 1000 | 1000 | 300 | B& J |
| 70 | BJS1-1010/400 | 1000 | 1000 | 400 | B& J |
| 71 | BJS1-1260/200 | 1200 | 600 | 200 | B& J |
| 72 | BJS1-1260/250 | 1200 | 600 | 250 | B& J |
| 73 | BJS1-1260/300 | 1200 | 600 | 300 | B& J |
| 74 | BJS1-1280/200 | 1200 | 800 | 200 | B& J |
| 75 | BJS1-1280/250 | 1200 | 800 | 250 | B& J |
| 76 | BJS1-1280/300 | 1200 | 800 | 300 | B& J |
| 77 | BJS1-1210/250 | 1200 | 1000 | 250 | B& J |
| 78 | BJS1-1210/300 | 1200 | 1000 | 300 | B& J |
| 79 | BJS1-1210/400 | 1200 | 1000 | 400 | B& J |
| 80 | BJS1-1210/300 | 1200 | 1200 | 300 | B& J |
| 81 | BJS1-1210/400 | 1200 | 1200 | 400 | B& J |
